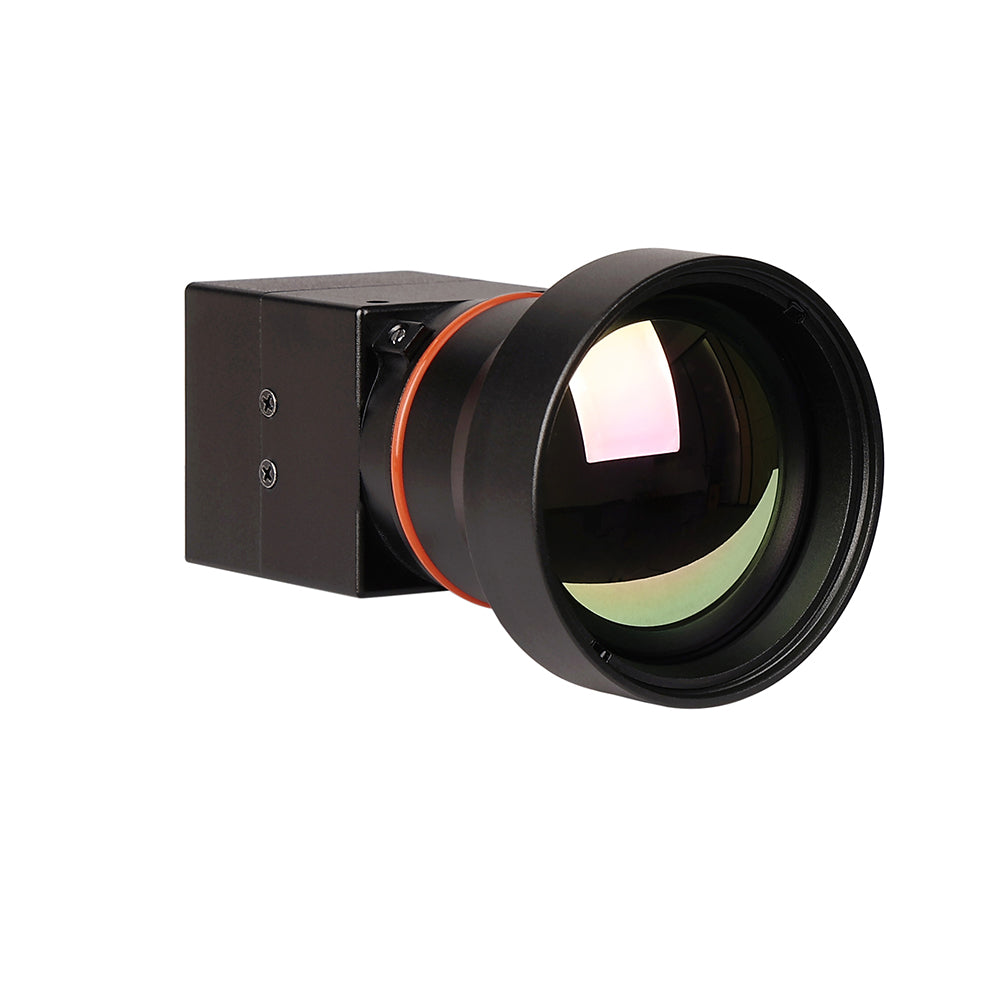

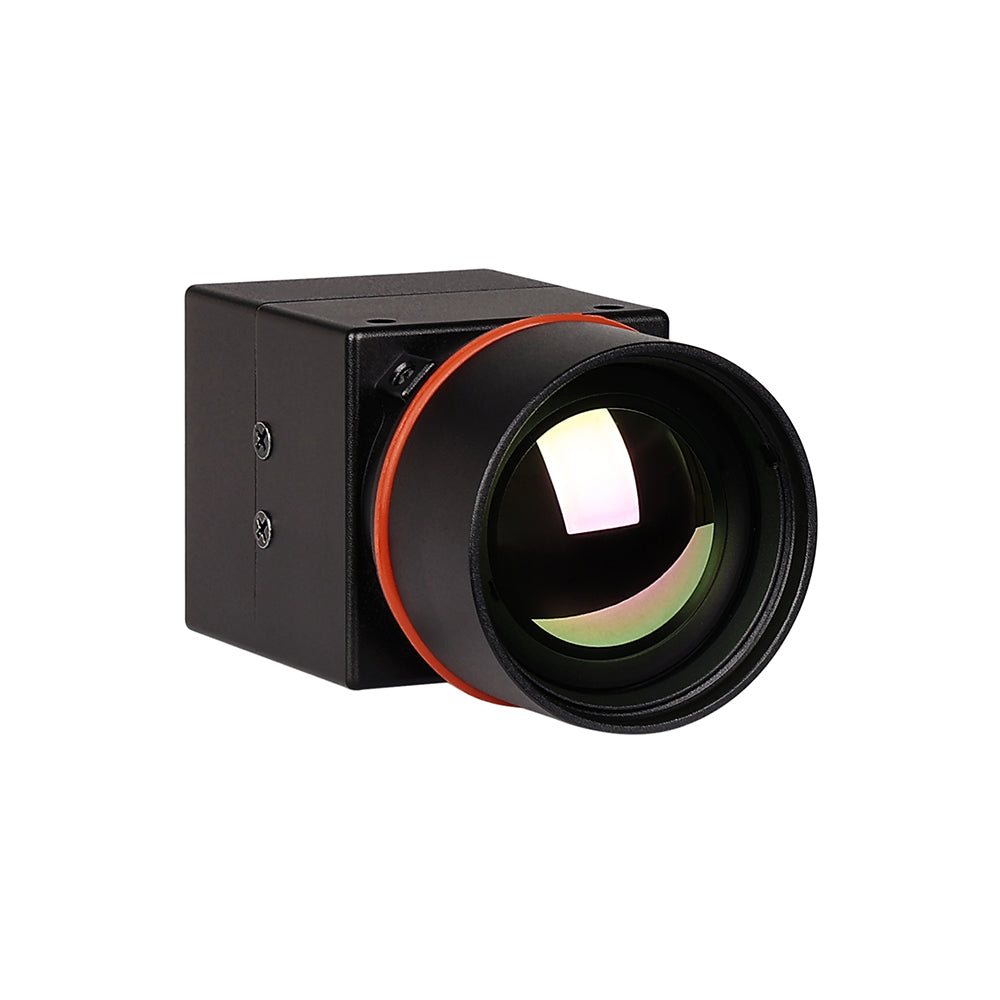

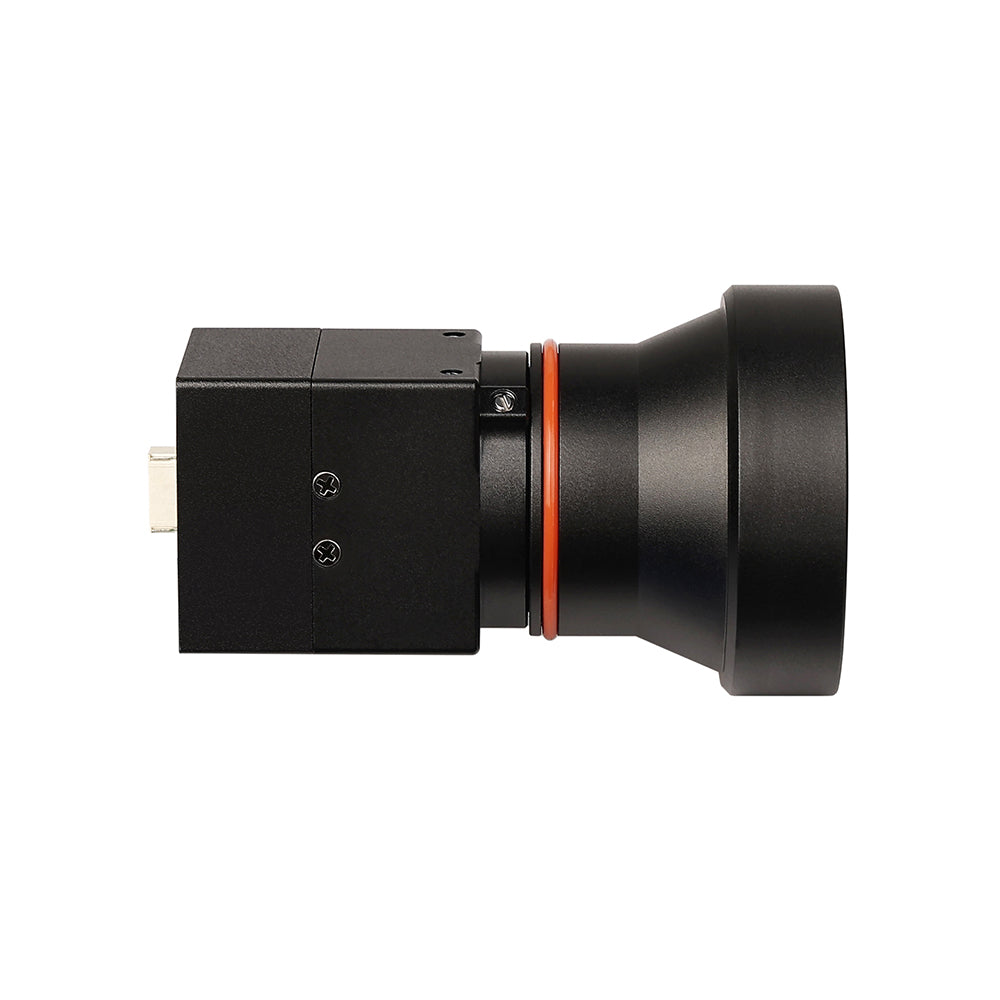

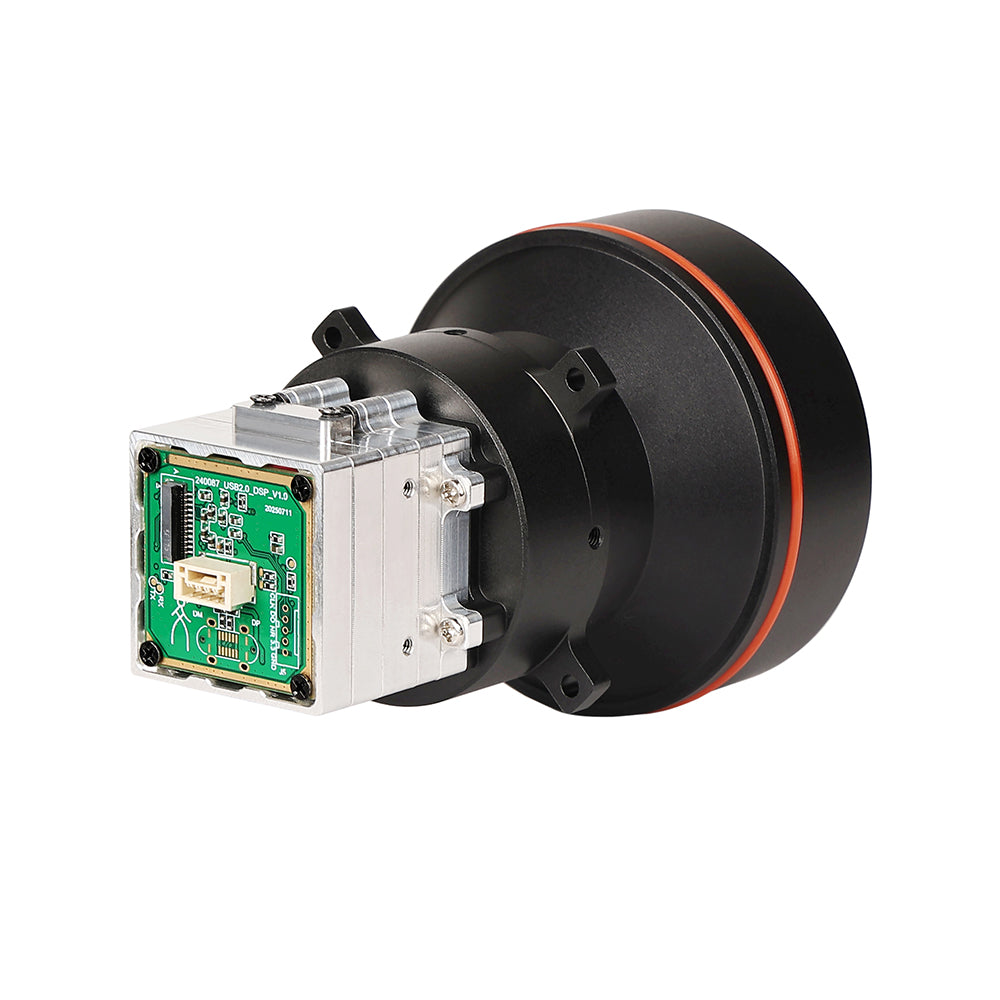

HT-T01/T02/T03 USB2.0 infrared module(640×512)


Model:: HT-T01-25mm
Price:
Sale price$899.00

Description

USB2.0 Infrared modules for UAV , contact me to get the lowest price: hti08@outlook.com

We accept USD and RMB.

 Model HT-T01 HT-T02 HT-T03
Detector type Vox Vox Vox
Infrared resolution 640x512 640x512 640x512
Pixel  size 12μm 12μm 12μm
Working band 8~14μm 8~14μm 8~14μm
NETD >35mK @F1.0,300K >35mK @F1.0,300K >35mK @F1.0,300K
Fvalue F1.0 F1.0 F1.0
Field of view 17.5°×14.0° 12.5°×10.0° 8.8°x7.0°
Focusing method manual focus manual focus manual focus
focal length 25mm 35mm 50mm
Image resolution 640x480,25fps 640x480,25fps 640x480,25fps
Palette White hot,black hot,fiery, rainbow,iron red,cool color White hot,black hot,fiery, rainbow,iron red,cool color White hot,black hot,fiery, rainbow,iron red,cool color
Functional interface  USB2.0(Image output and function control)  USB2.0(Image output and function control)  USB2.0(Image output and function control)
Operating Temperature -20℃~+60℃ -20℃~+60℃ -20℃~+60℃
Power supply DC5V+10%,0.4A DC5V+10%,0.4A DC5V+10%,0.4A
Power consumption <2W <2W <2W
Product dimensions 60×31×31mm 70×45×45mm 90×63×63mm
