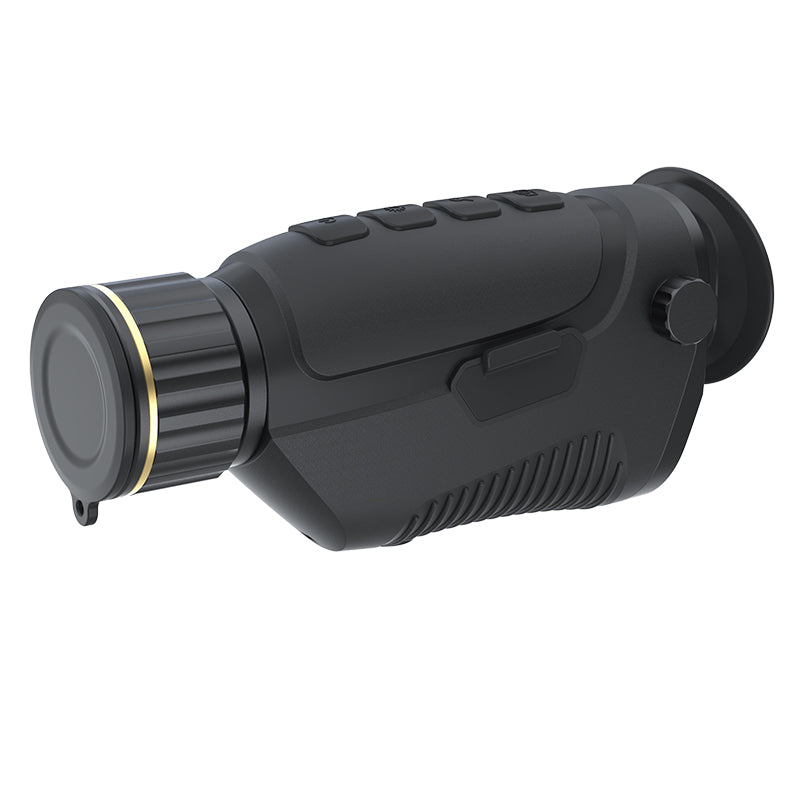

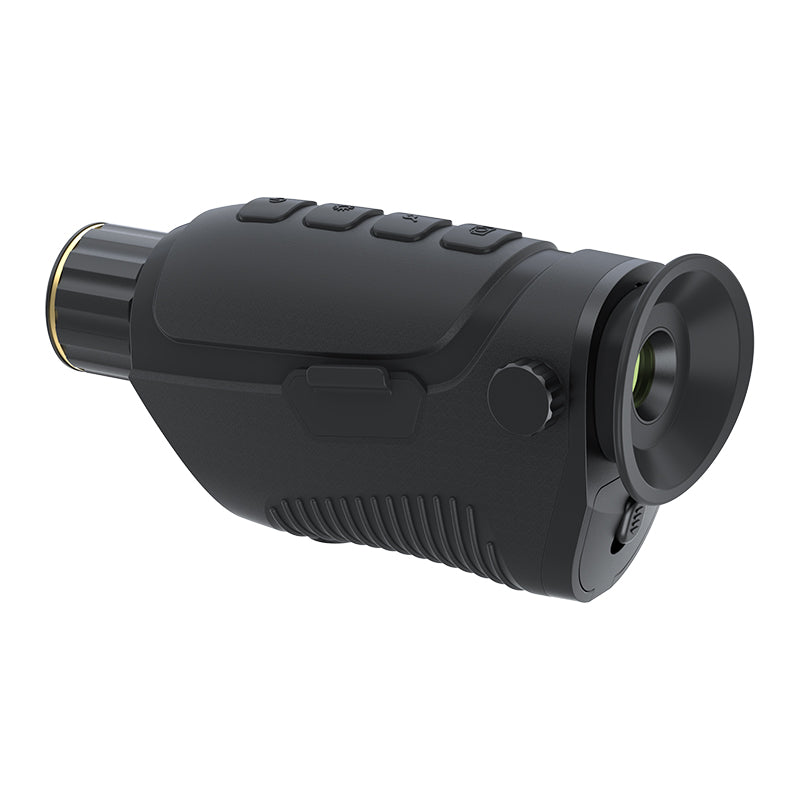

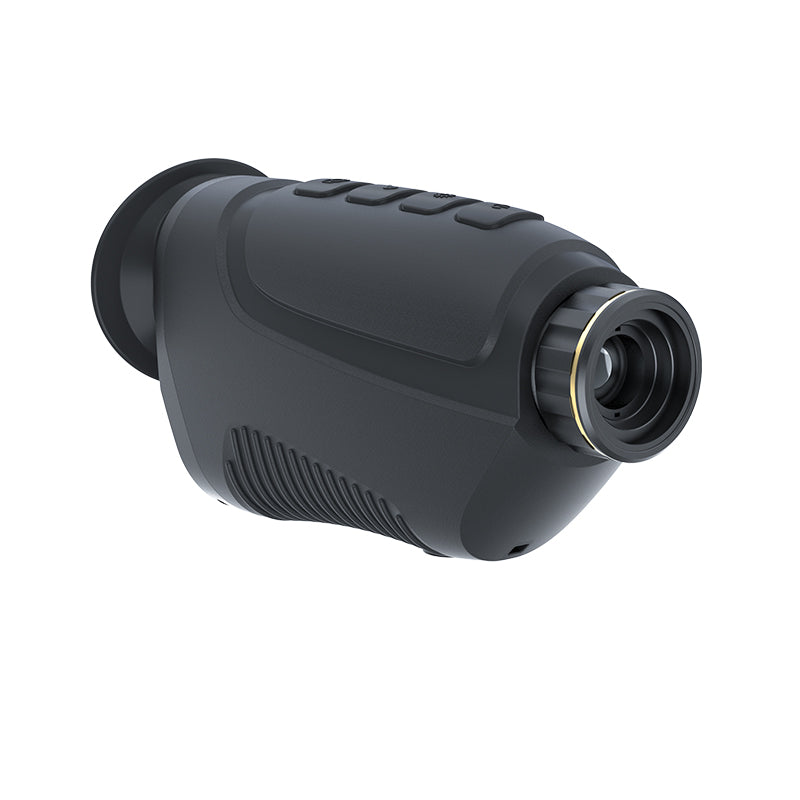

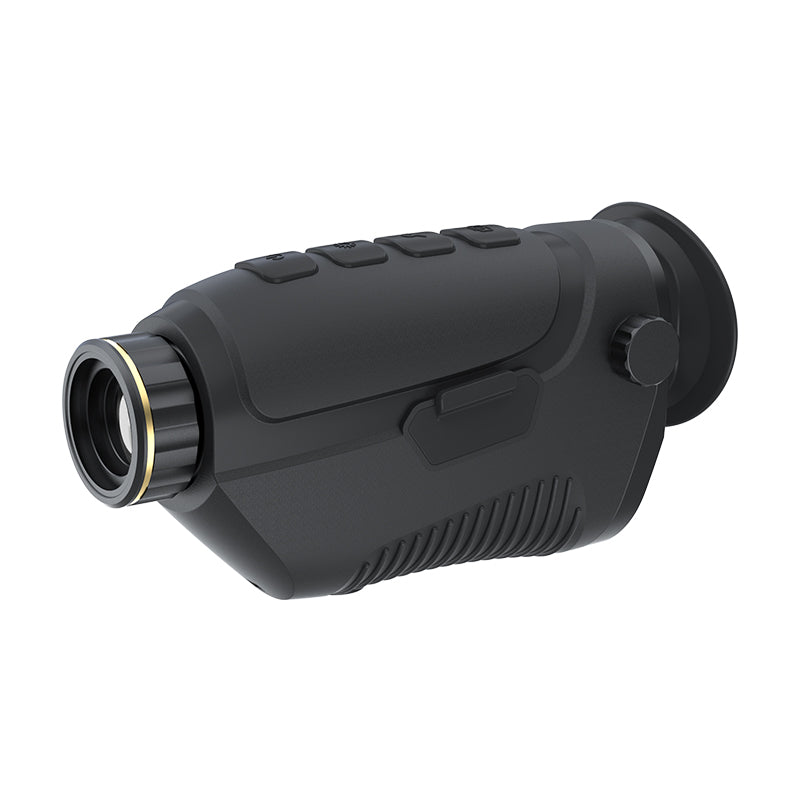

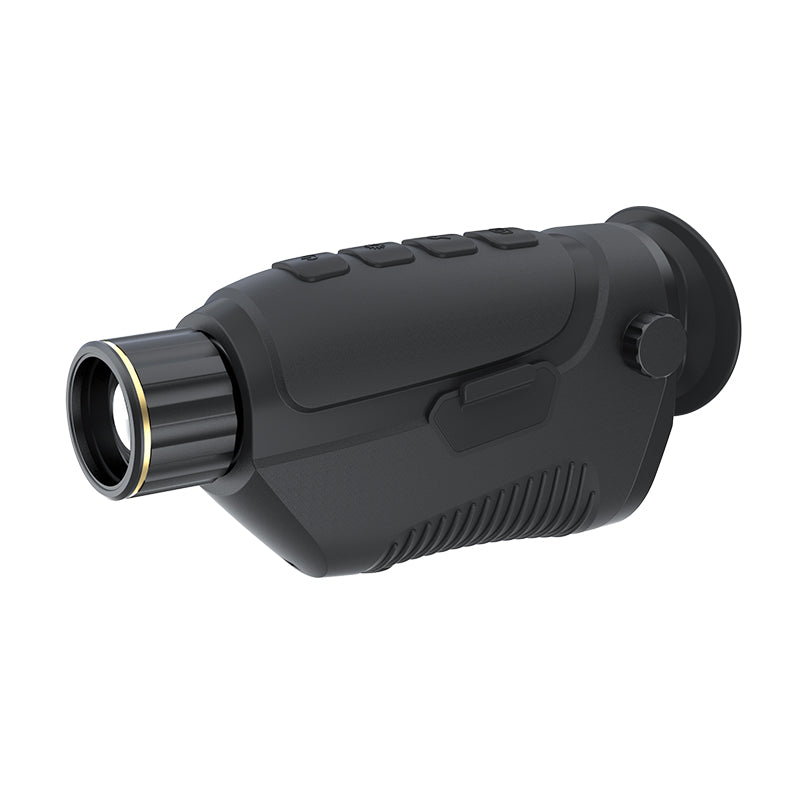

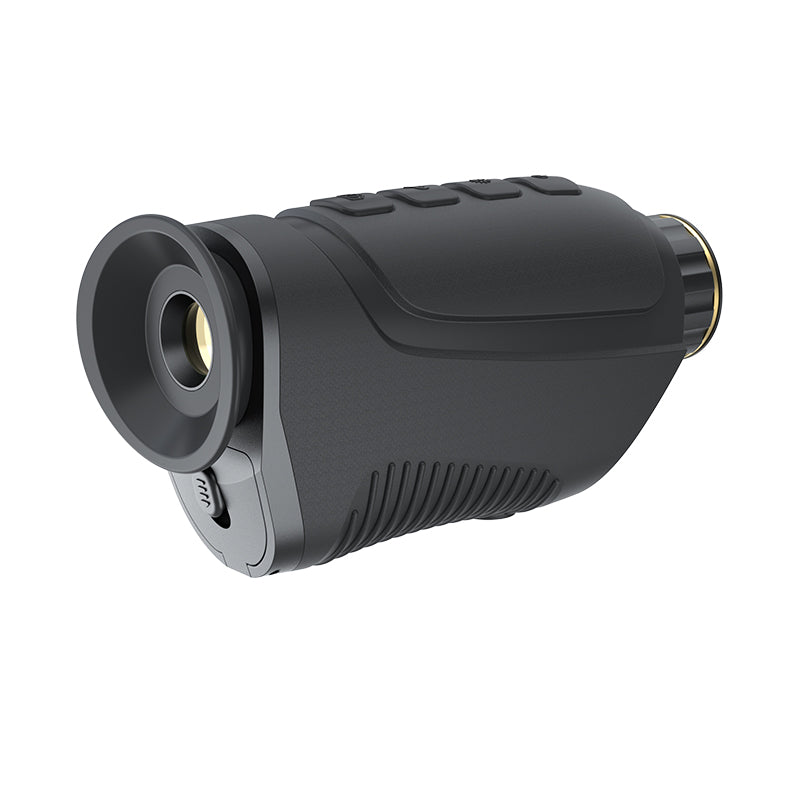

HT-S102/S103/S104 Outdoor thermal monocular


Resolution: 256×192
Len: 15mm
Price:
Sale price$459.00

Description

Contact us to get the lowest price.: hti08@outlook.com

Resolution
 256X192
384X288
640X512
NETD
≤50mK@25℃,F#1.0
≤30mK@25℃,F#1.0
≤25mK@25℃,F#1.0
Pixel pitch
12μm


Working band
8~14μm


Frame rate
50Hz


Focal length
15mm/25mm
25mm/35mm 35mm
Magnification
3.4x/5.7x
2.7x/3.4x
2.2x
FOV
11.7°×8.8°/
7.0°×5.4°
10.5°×7.9°/7.5°×5.7°
12.5°×10.0°
Focus mode
Manual focus


Lens aperture
1.0


Focus range
5m-∞


Detection distance
708m/1180m
1180m/1653m
1653m
Vehicles
1875m/3125m
3125m/4375m
4375m
Identification distance



Human
177m/295m
295m/413m
413m
Vehicles
468m/781m
781m/1094m
1094m
Eye relief
18.5mm


Diopter adjustment
±4D


Photo & Video recording/
CVBS/
Hot Tracking/
WIFI/
Supported
Supported
Supported
Display type
OLED


Resolution & Display size
800x600 (0.32 inches)


Language
The supported language can be set in the language setting


E-zoom
1X/2X/4X
1X/2X/4X/8X
1X/2X/4X/8X

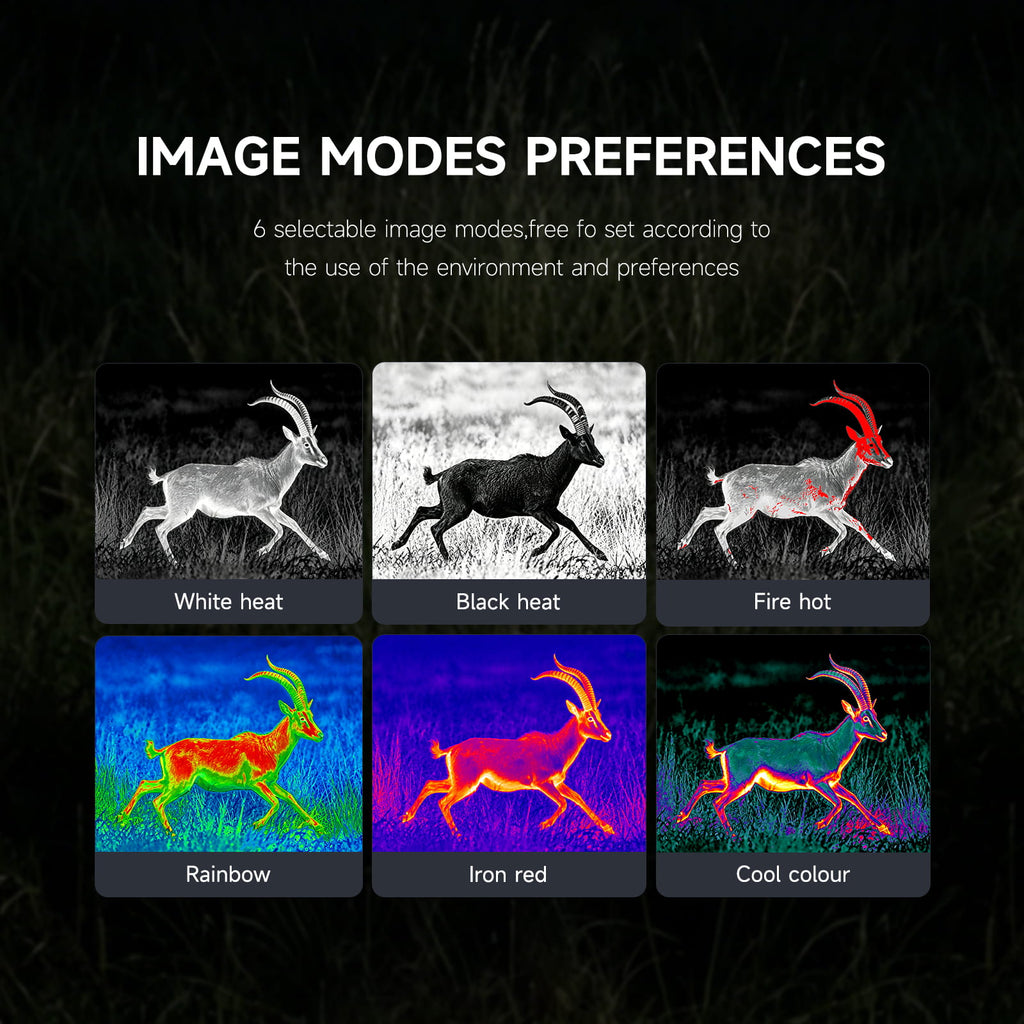

Pseudo colors
white hot, black hot, red hot,rainbow, iron red and cool color


External power supply
5V (USB-C)


Capacity
Built in 16GB EMMC (The system takes up some space, actually about 13.8G)

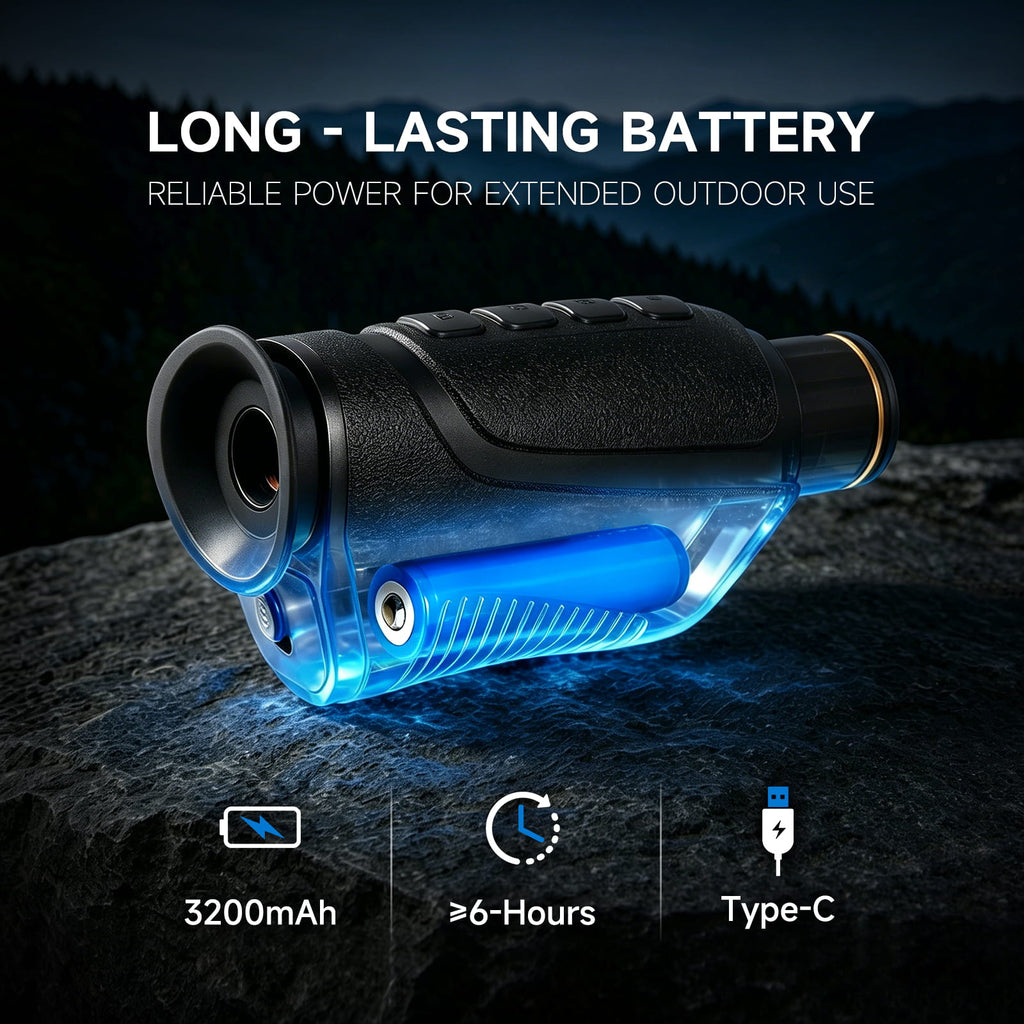

Rechargeable lithium battery
18650 (3200mAh


Operating time
≥7h
≥6h
≥4h
Spatial resolution
0.8mrad/
0.48mrad
0.48mrad/
0.34mrad
0.34mrad
Protection level
IP66
