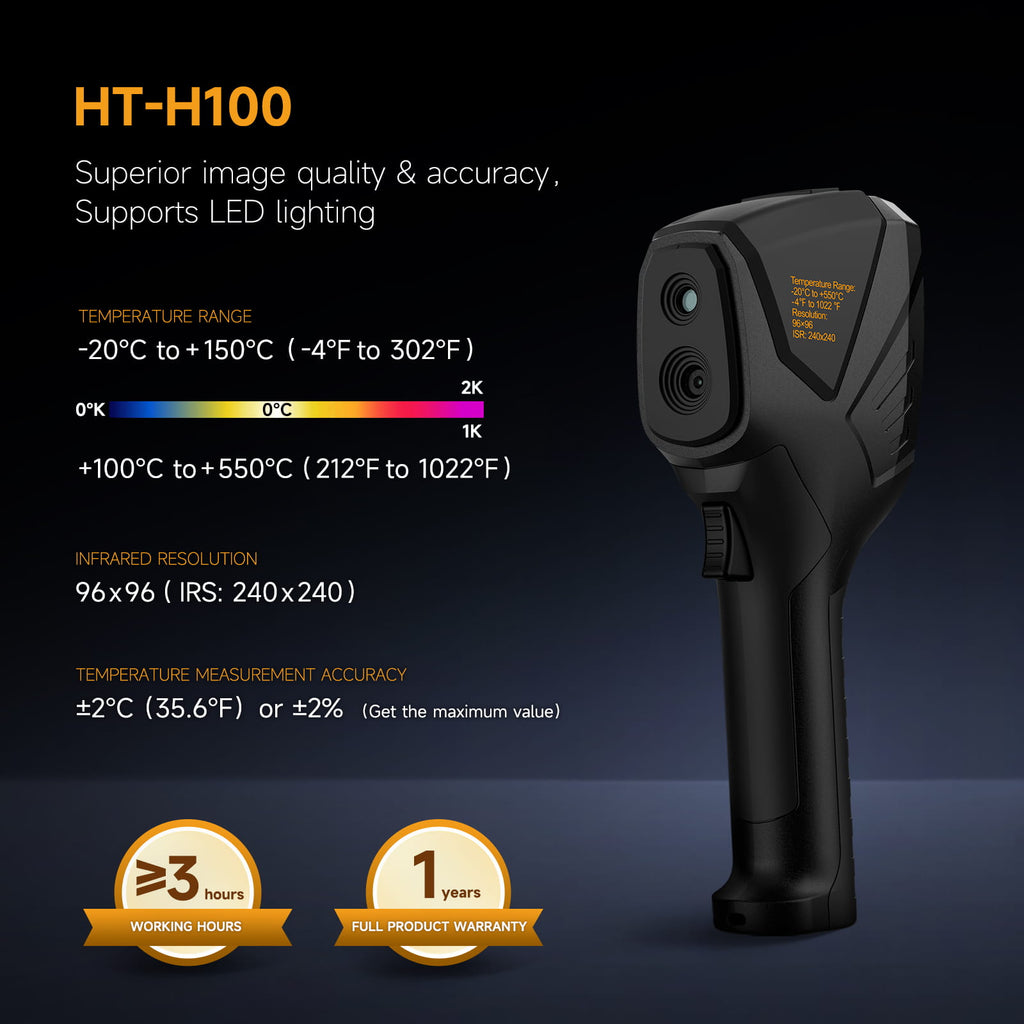

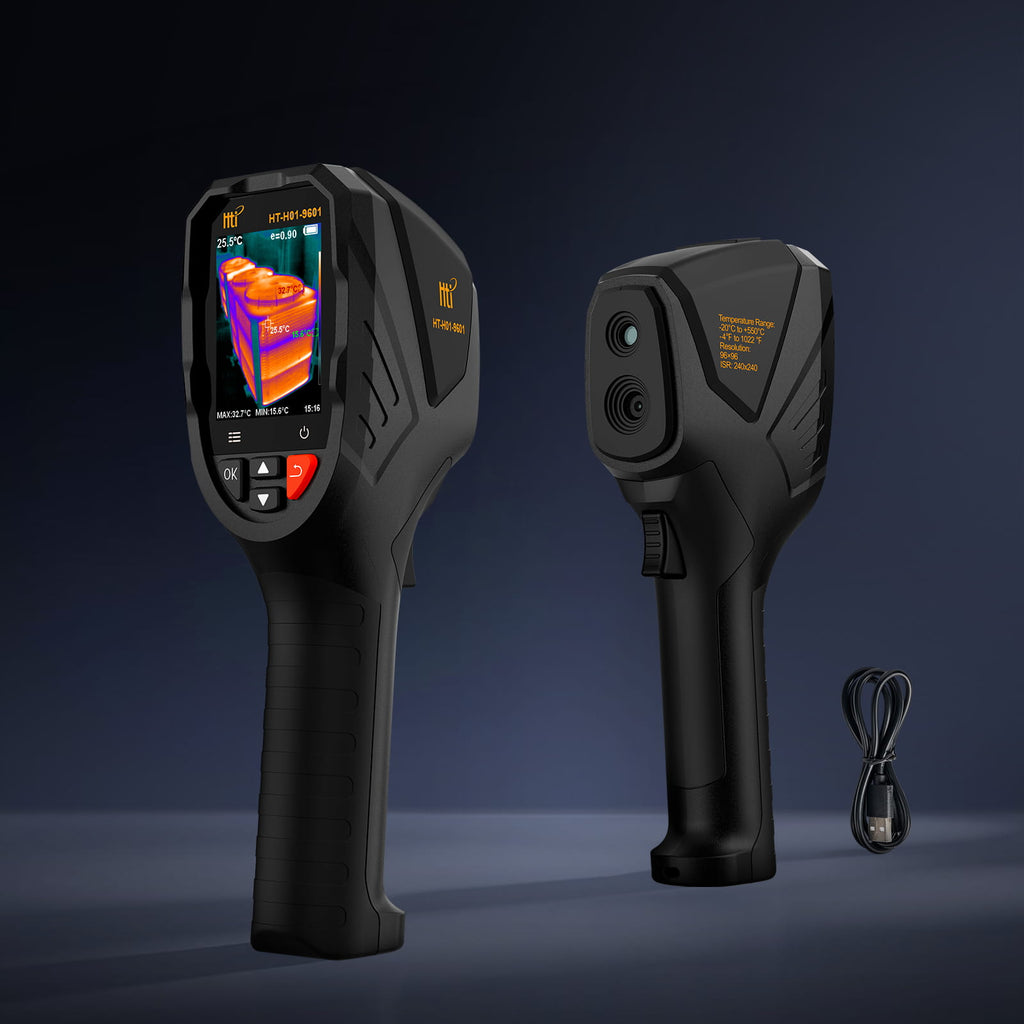

HT-H100 Thermal imager(IRS 240×240)


Model: HT-H100
Price:
Sale price$169.00

Description

The HT-H100 does not have a visible light lens, only infrared mode.

We are looking for distributors. Please contact us at: hti08@outlook.com

 Detector type
Vanadium oxide (VOx) microcalorimeter

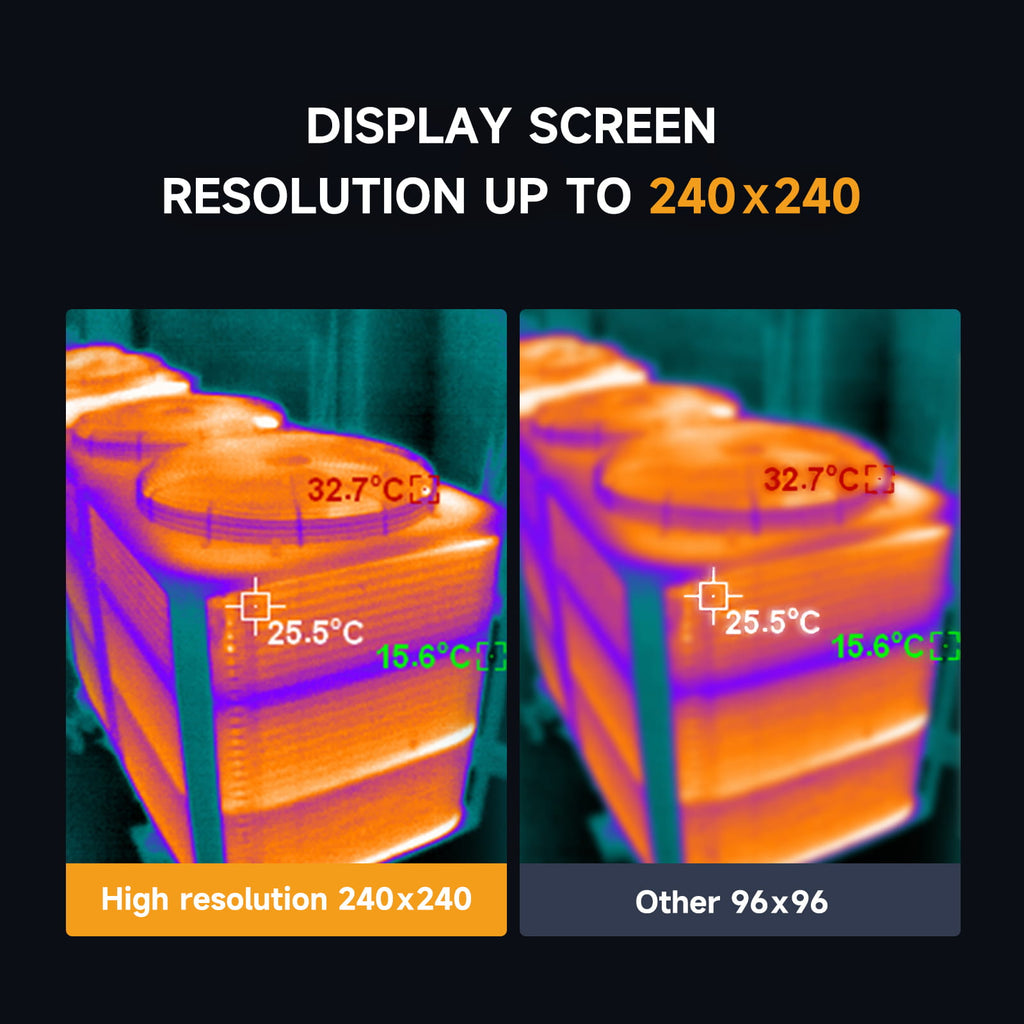

Infrared image resolution
96x96 (IRS: 240x240)
Pixel spacing
12μm
Focal length
1.35mm
Focus mode
Fixed focus
Viewing angle
50°×50°
Working band
8~14μm
NETD
≤60mK@25, @F/1.0
Image frame rate
≤18Hz
Temperature
measurement
accuracy
±2 or ±2% (maximum value)
Temperature
measurement
resolution
0.1
Temperature
measurement mode

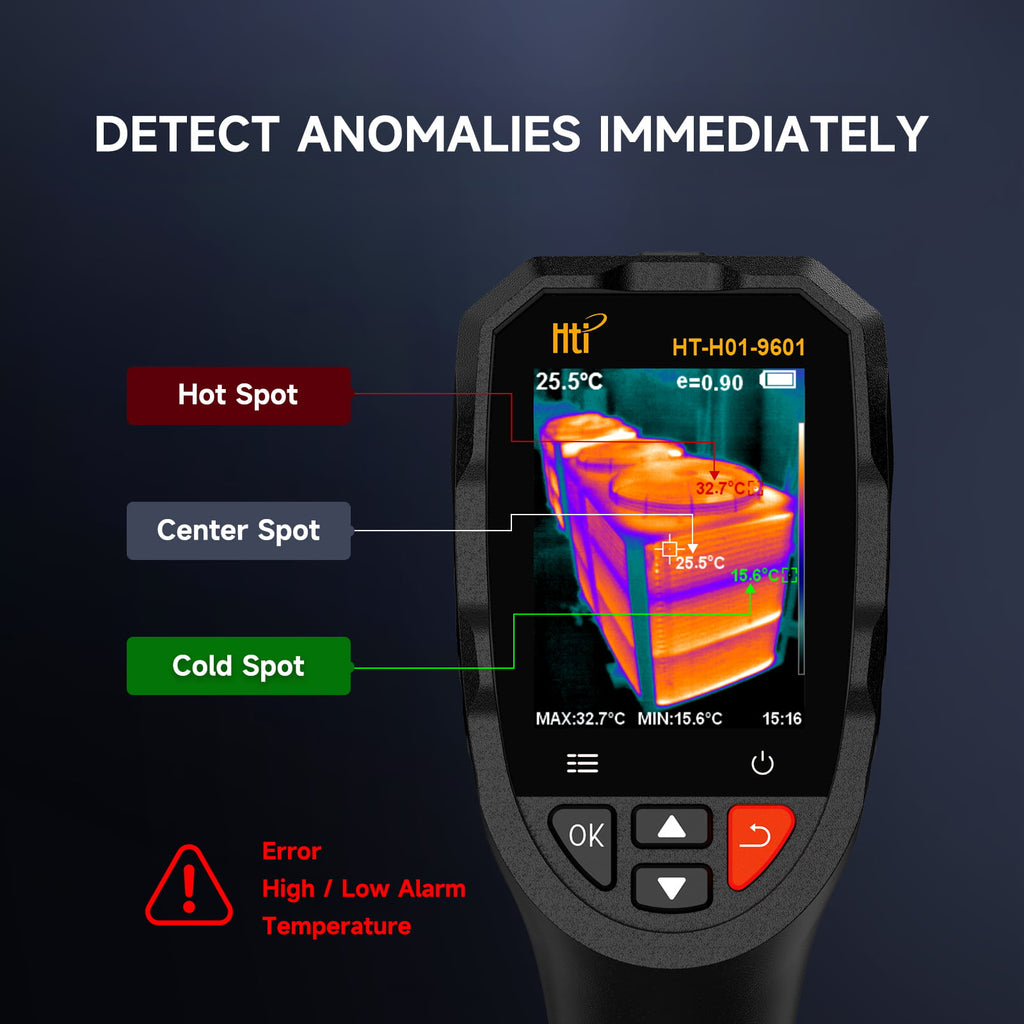

Center point/max temperature/min temperature
Color palette
Rainbow/iron red/red heat/white heat/black hea
Emissivity setting
0.01 ~ 1.00 adjustabl
Visible light
resolutio

640×480

Display screen size
2.4 inches (240x320
Image display mode
Infrared/visible light/double light fusion

Device storage

Built-in 8G eMMC (user’s available
memory space at about 6.5G)
Image/video format stored
JPG/MP4
Temperature
measurement accuracy
-20 ~ +150 (-4 ~ 302)
100 ~ 550 (212 ~ 1022)
Image/Video export mode
USB connecting computer exported
Language
English, Chinese, Italian and German

Battery type

Built-in rechargeable lithium
battery (18650)
Battery capacity
2000mAh
Working hours
≥4 hours
Power interface
Type-C
Battery configuration
5 minutes/20 minutes/non-automatic
power off
Working temperature
-5 ~ +40
Storage temperature
-10 ~ +50
Relative humidity
10% to 85% RH (non-condensation)
Product weight
249.5g
