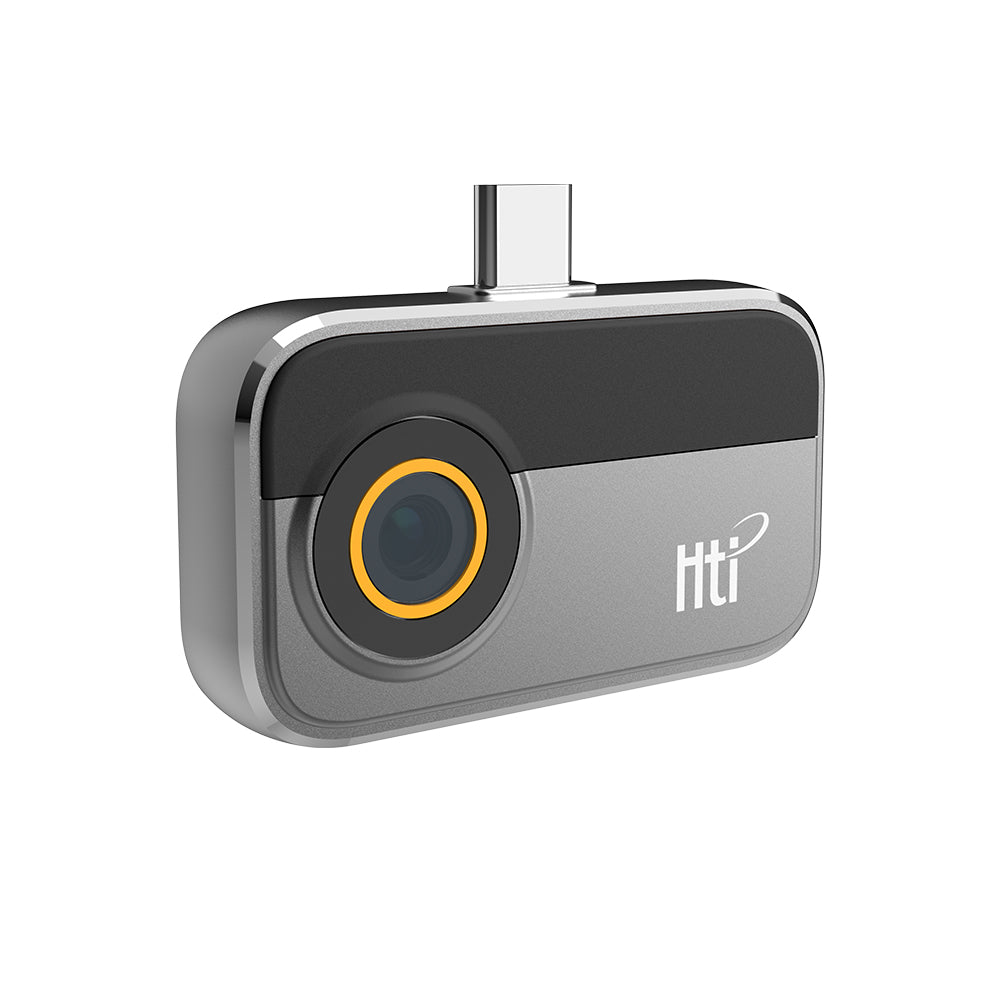

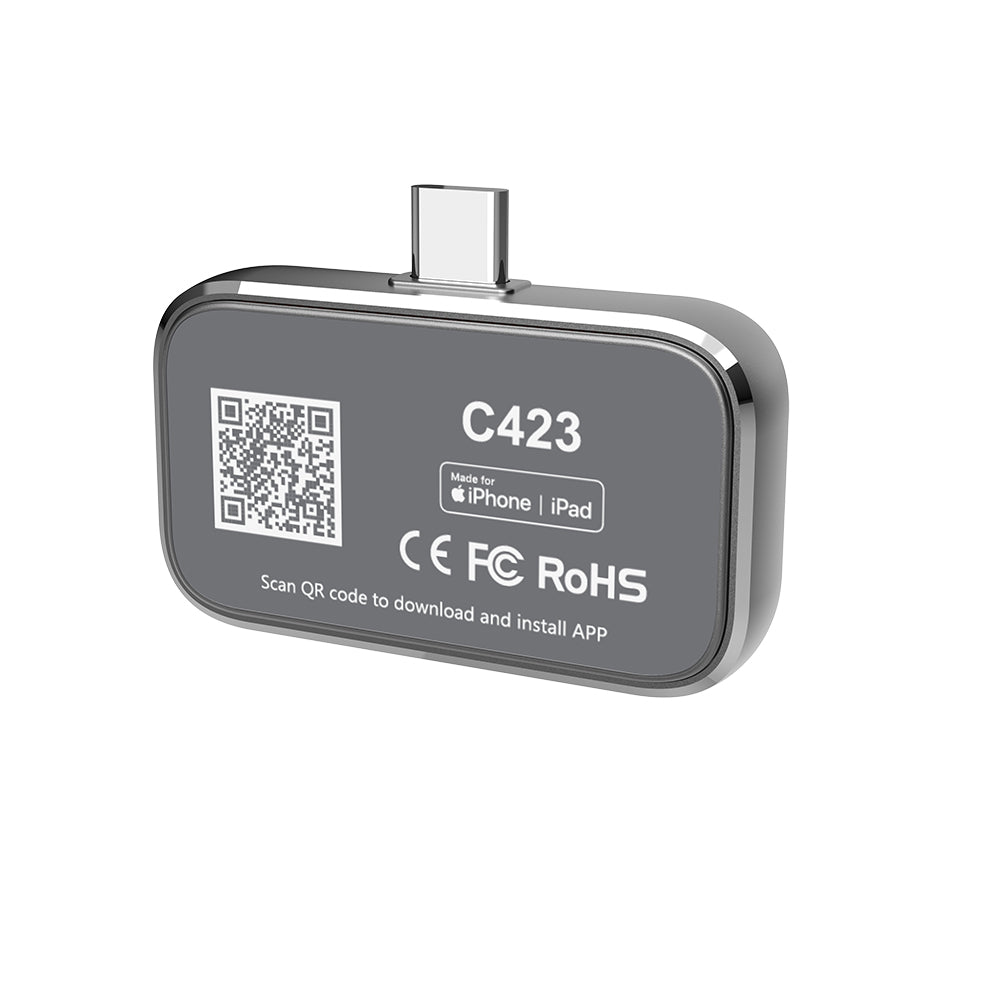

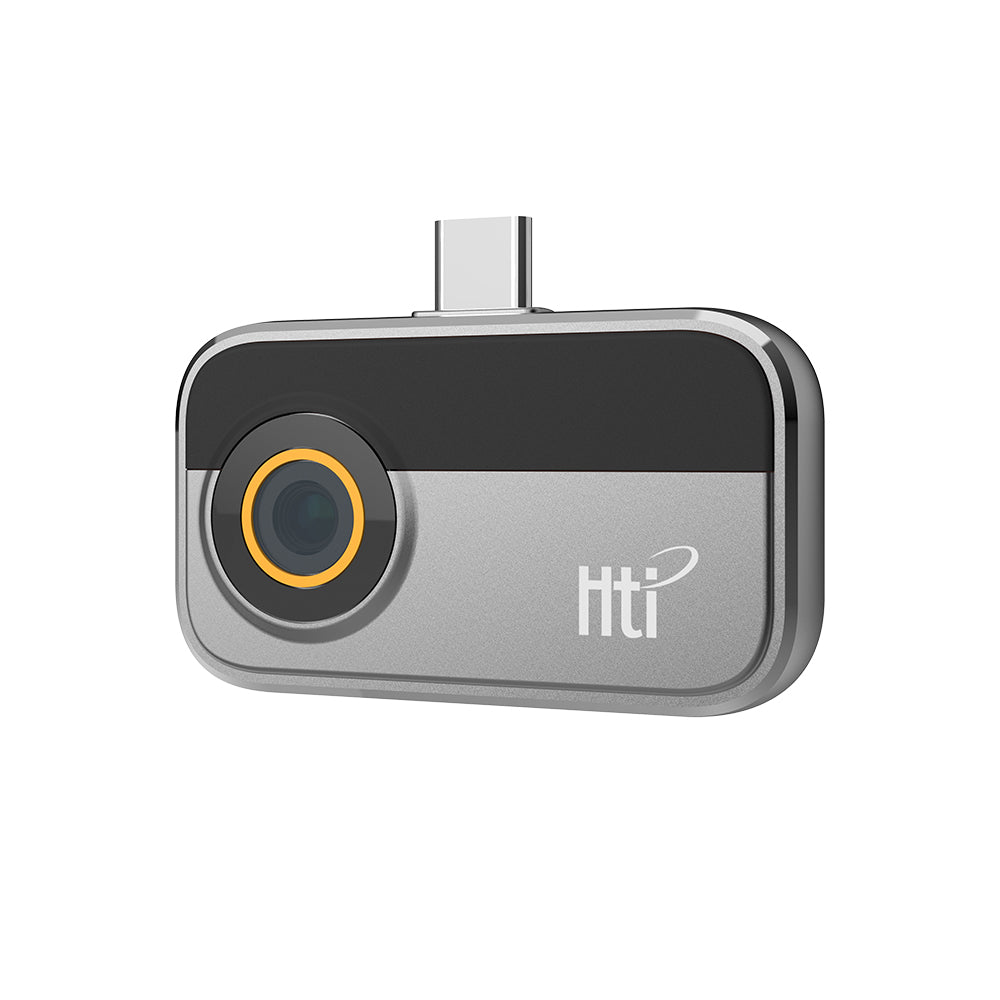

HT-C423 Mobile Phone Thermal Imager(ISR 512×384)


Price:
Sale price$245.00

Description

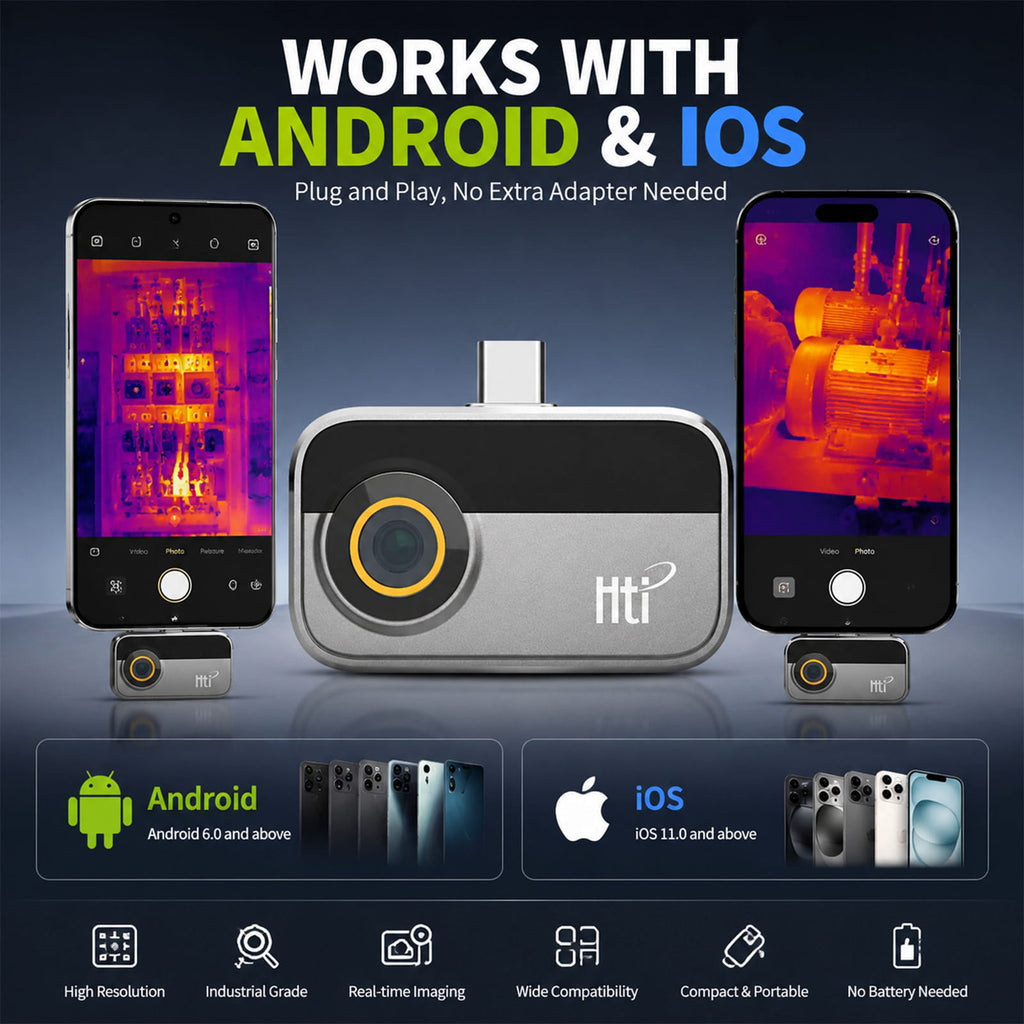

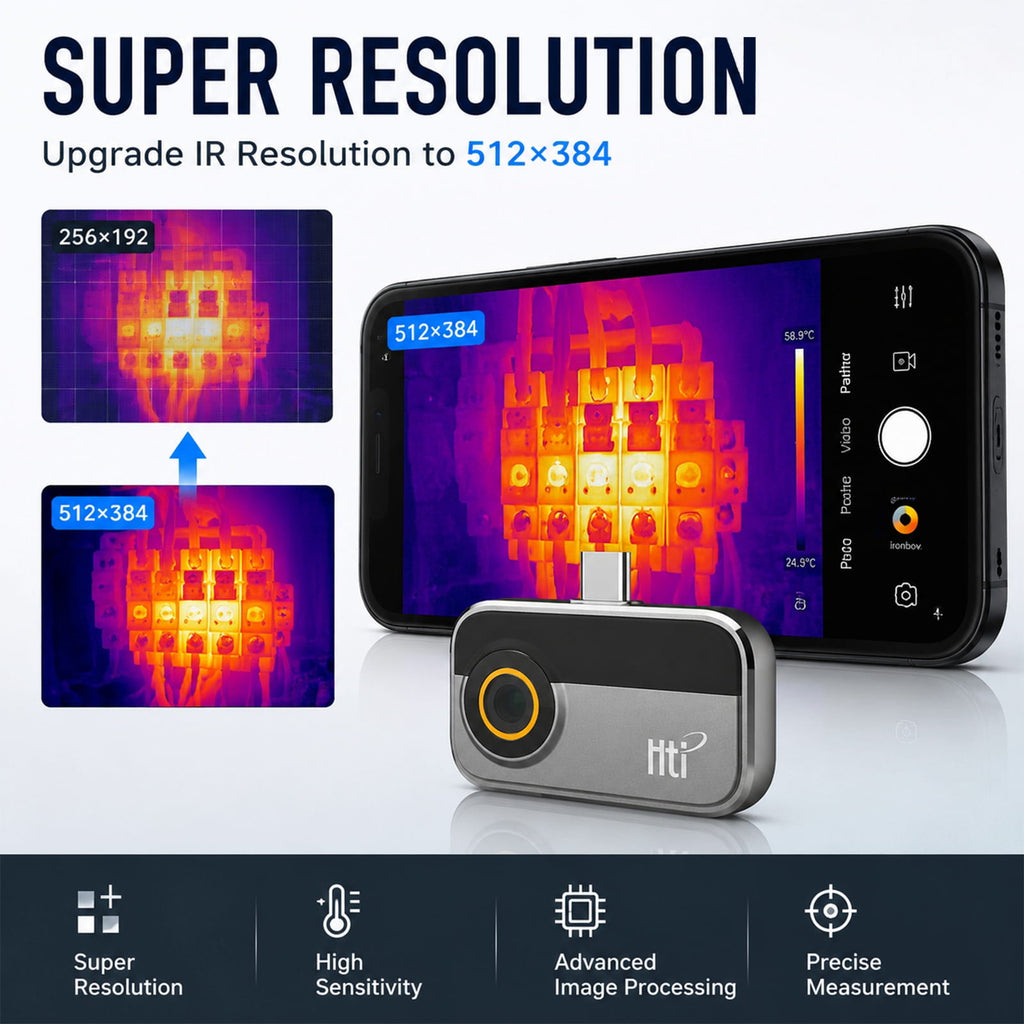

HT-C423 supports both Android and Apple systems and has the super-resolution function.

Detector type :

Vanadium oxide non-cooled infrared detector

Infrared resolution:

256x192(ISR 512×384)

 Pixel spacing:

12μm

Focal length:

3.2mm F1.1

Angle of view:

 56.0°(H)×42°(V)

IFOV:

 3.43mrad

Working band:

 8~14μm

 NETD:

 <50mK @25℃, F#1.0

 Image frame rate:

 ≤25Hz

Focusing mode:

 Free Focus

Brightness adjustment:

Supported

Contrast adjustment:

Supported

palettes:

White Hot,Black Hot,Blend,Iron,Dark Brown,Red Hot,Green Hot,Rainbow

Temperature

measurement method:

Center point, highest temperature,
lowest temperature,point, line, area

Temperature measurement range:

-20 ℃ ~ 120 ℃ and 120 ℃ ~ 550 ℃

Temperature measuring distance:

0.3m~3m

Temperature measurement resolution:

± 2 ° C or reading ± 2%

Camera/video:

Supported

Picture /Video format:

 JPG/MP4

Language:

 Chinese, English

Power consumption:

≤0.36W

External interface:

 USB Type-C

Working temperature:

 -20℃ ~ +50℃

Storage temperature:

 -30℃ ~ +70℃

Protection level:

 IP54

 Product size:

 53×29×11.5mm

Product weight:

 27g
