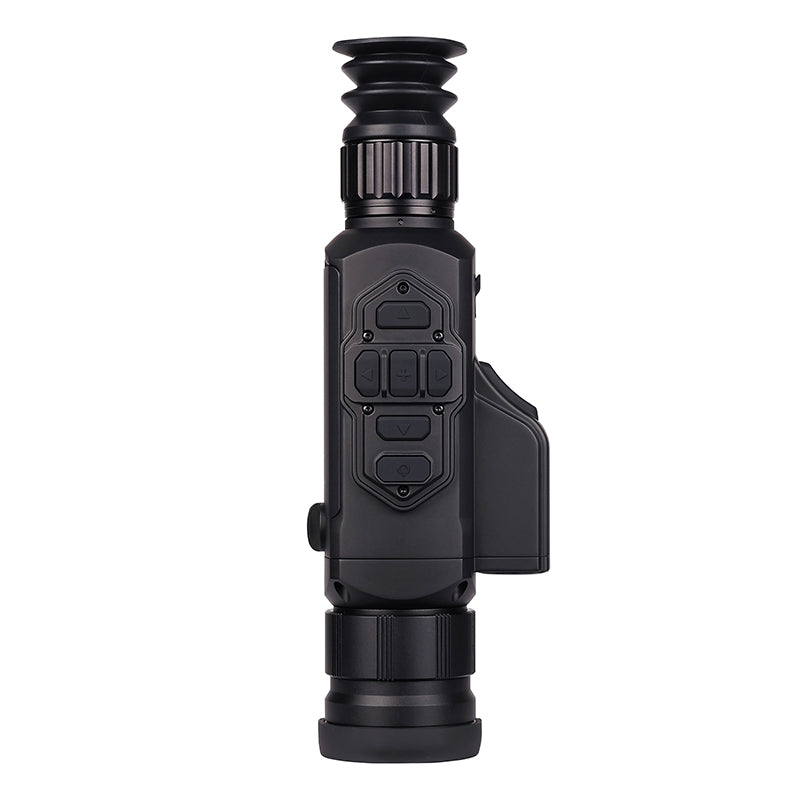

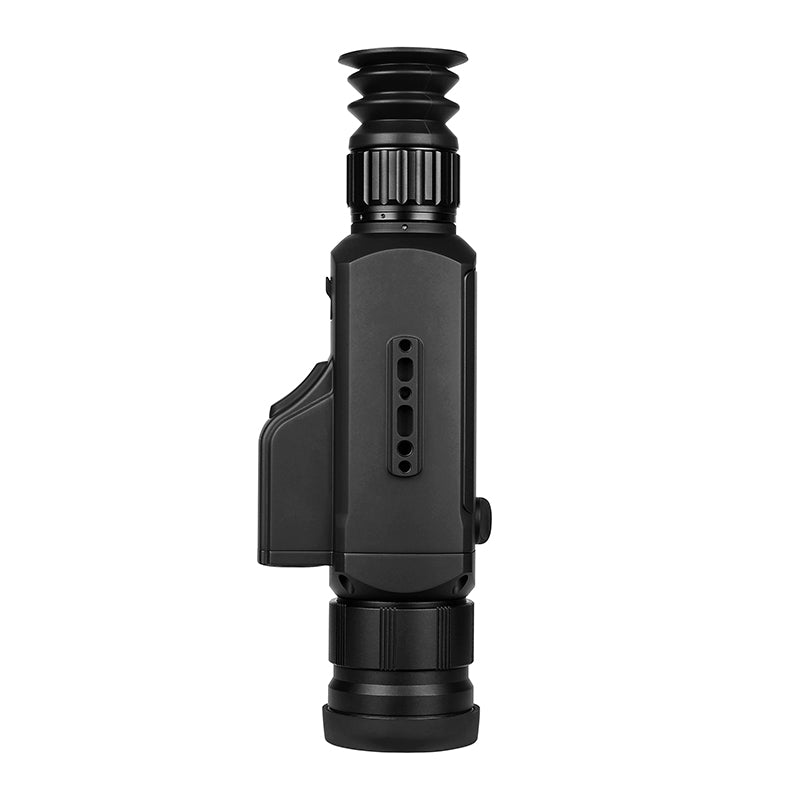

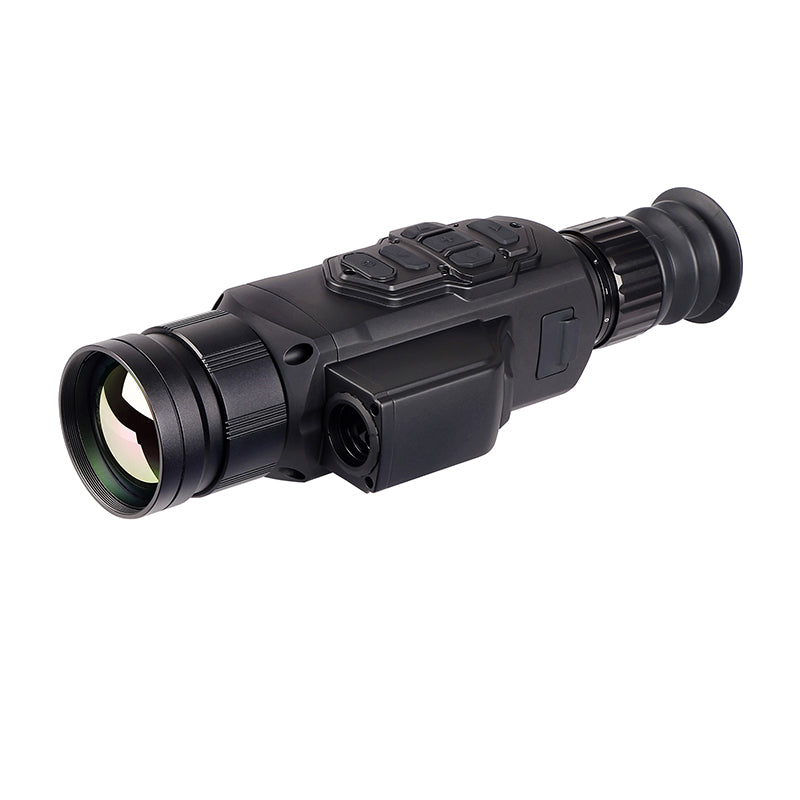

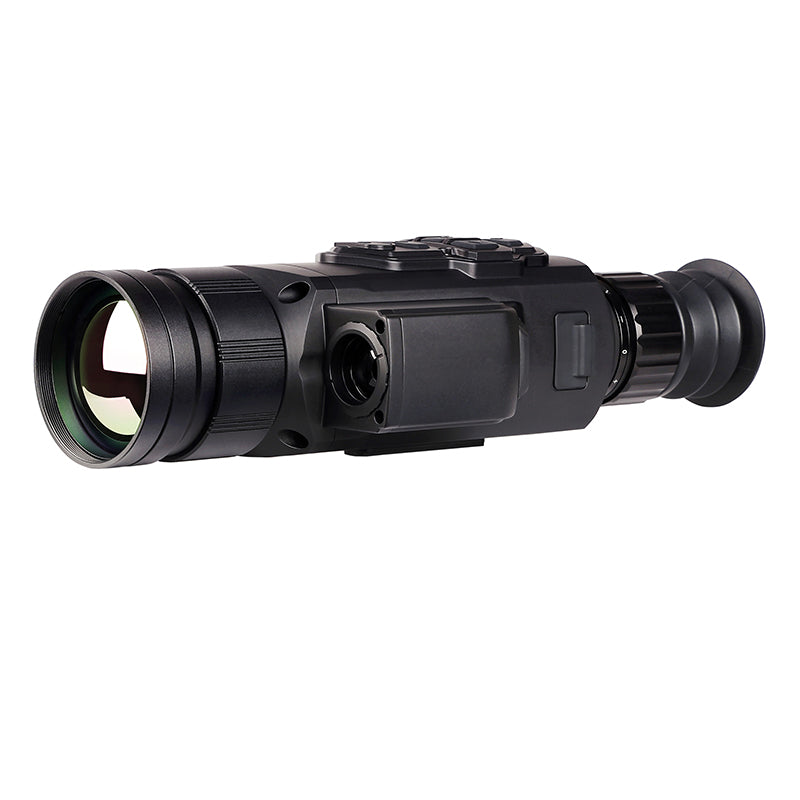

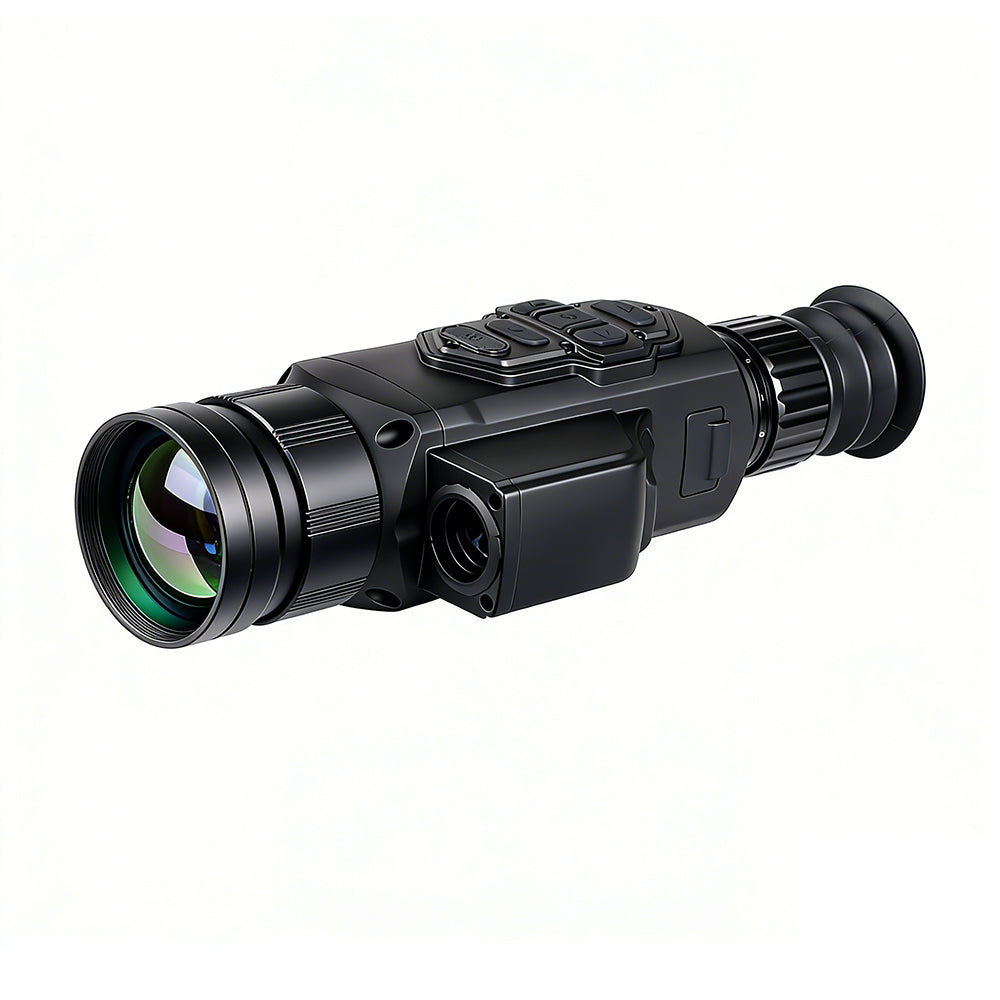

2026 New Product HT-A01 Thermal Imaging scope(640×512)

Save $400.00

Model:: A01-0650L(640×512)
Country: USA
Price:
Sale price$1,599.00 Regular price$1,999.00

Description

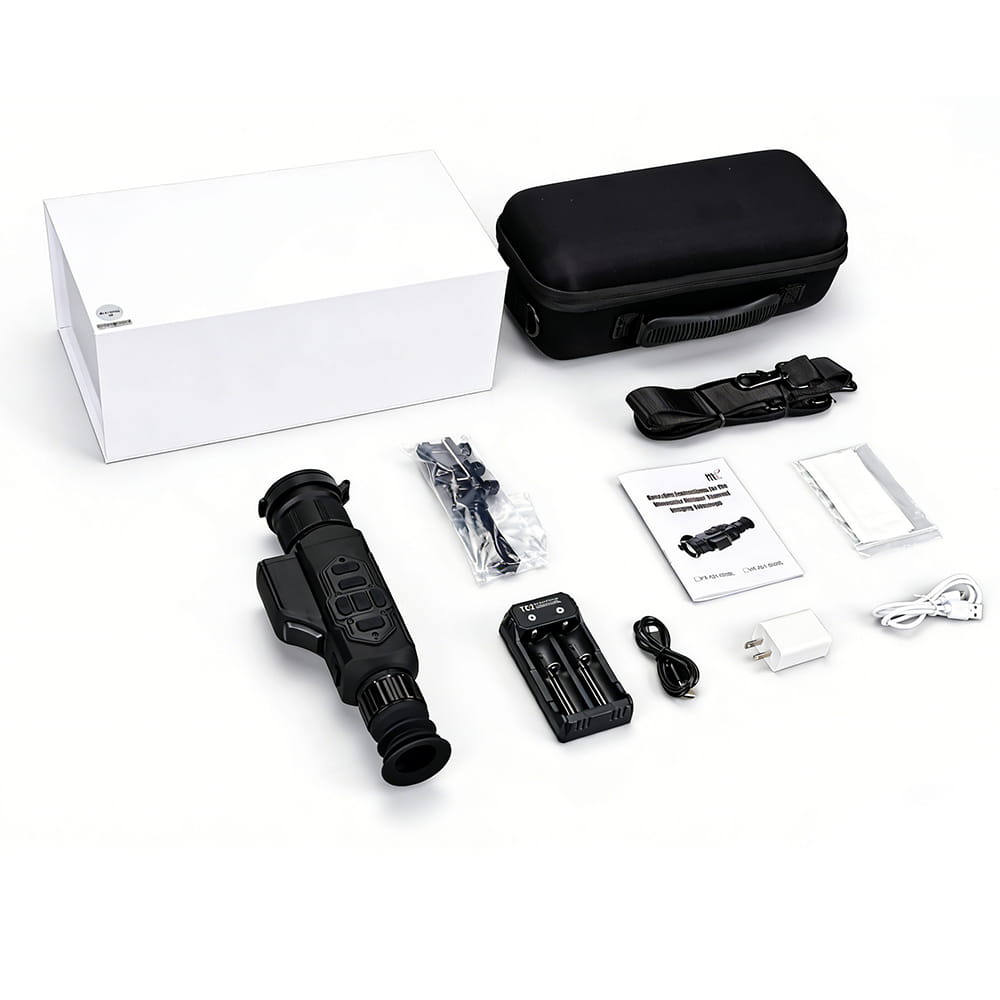

HT-A01 with a mount. with ballistic calculation, with CVBS.

We are looking for an distributors, please contact us: hti08@outlook.com

Thermal resolution

384×288(A01-0335L)

640×512(A01-0650L)

Detector type

Vox


Pixel size

12μm


Focus length/

Field angle

35mm

7.5° X 5.7°

50mm

8.8°×7.0°

Magnification
3.3
2.8
Close-up range
1m-∞
5m-∞
Detection Range
(Target:1.7mx0.5m)
1800m
2600m
Identification Range
(Target:1.7mx0.5m)
500m
650m
NETD
≤30mk @25°C,F#1.0
≤40mk @25°C,F#1.0
Work band

8~14μm

LRF Measuring Range
10m~1200m(905nm)
LRF Ranging Accuracy
±2m

Frame rate

50Hz

 Focusing mode

 Manual

Eyepiece



Eye relief

 48mm

Dioptre adjustment
-5 SD~+5 SD

 Display



 Type

OLED

Resolution

1024×768

Size

 0.39 inch

Interface


Language

 English,Chinese

Electronic zoom

 1×/2×/4×/8×

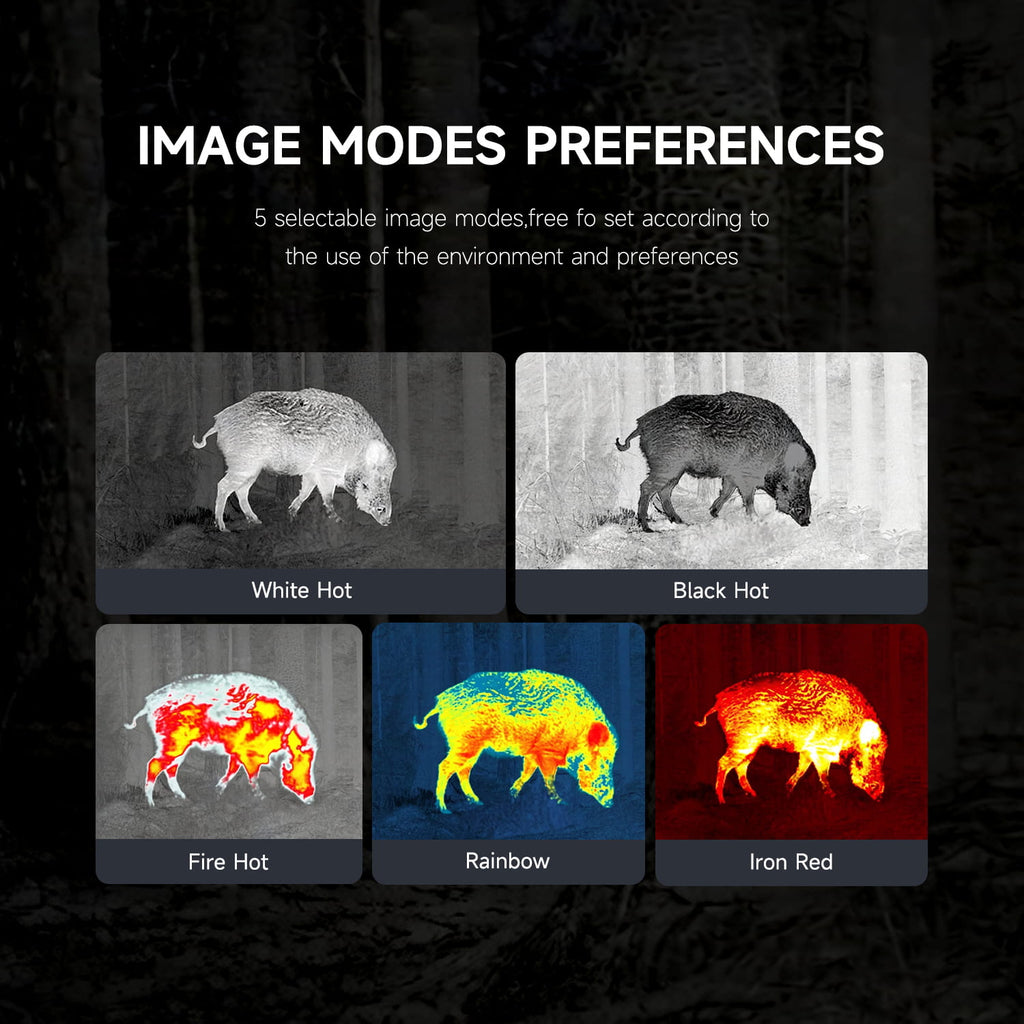

Color palettes

 White hot, Black hot, Fire hot, Rainbow, Iron red

Photo/Record

 Supported

Picture in picture

 Supported

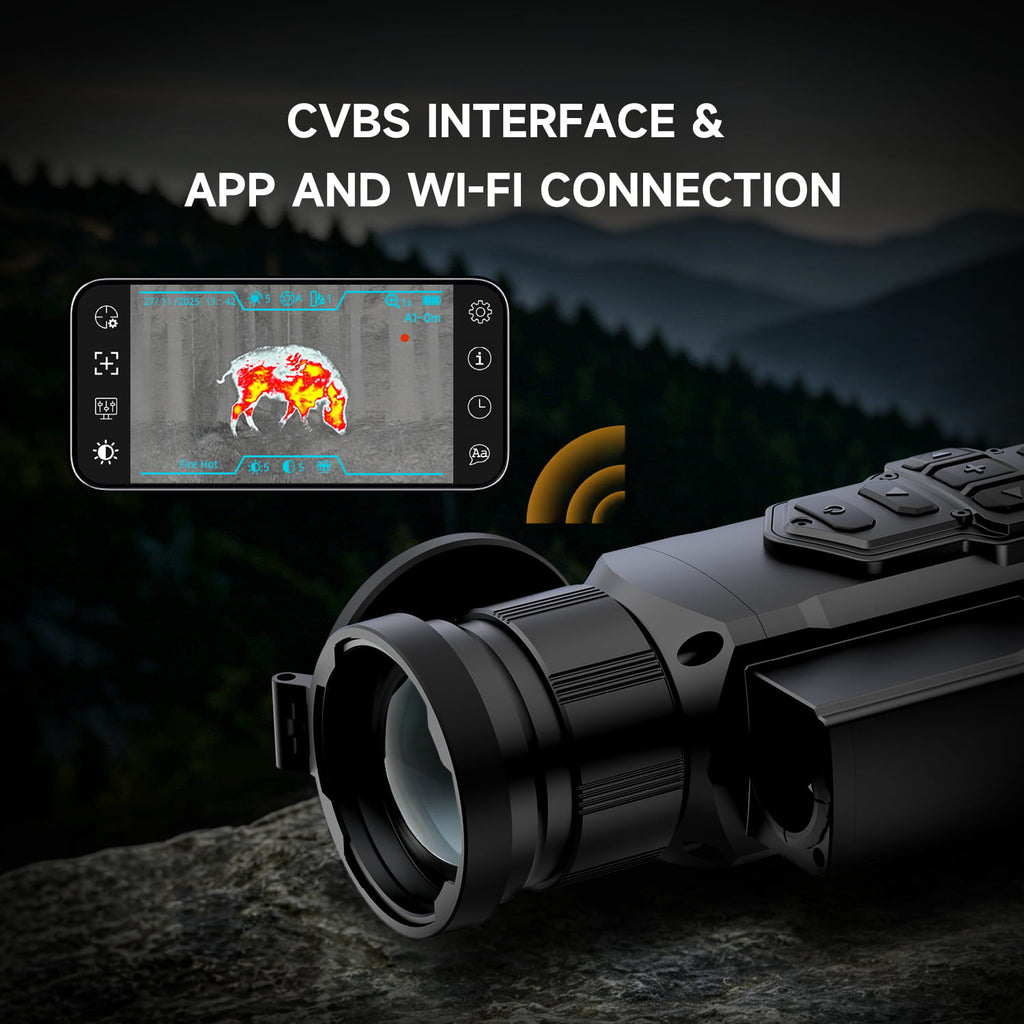

WIFI/CVBS

 Supported

Capacity

 Built-in 16G EMMC(The system takes up some space and it is 13.8G actually)

Hotspot Tracking

 Supported

recording

 Supported

Image/video format

 JPG/MP4

USB interface

 Charging/export image and video

USB

Supported

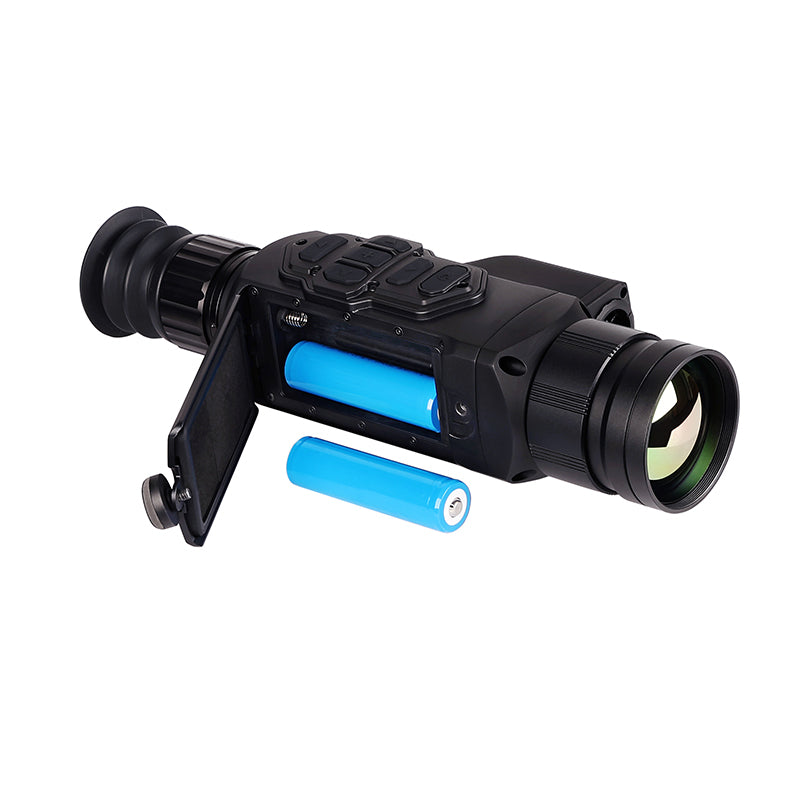

Detachable rechargeable lithium battery

2*18650/3200mAH

Operating time
≥9h

Work temperature

 -40 ~ 60,24H

Storage temperature

-40℃~65

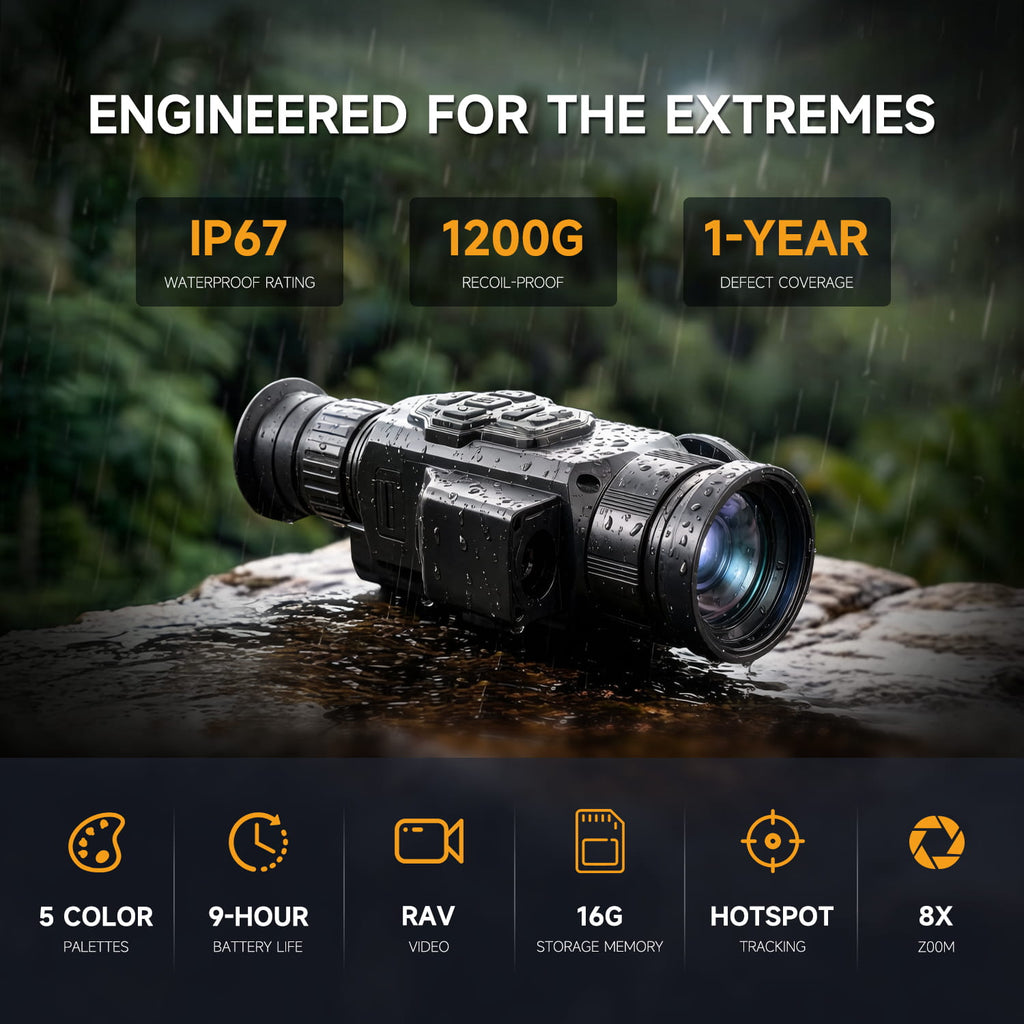

Impact

1200G

Protection grade

 IP67

Product size

268.9*91*64.3mm

Product weight

 868g(Without battery)


Download the manual
