Description

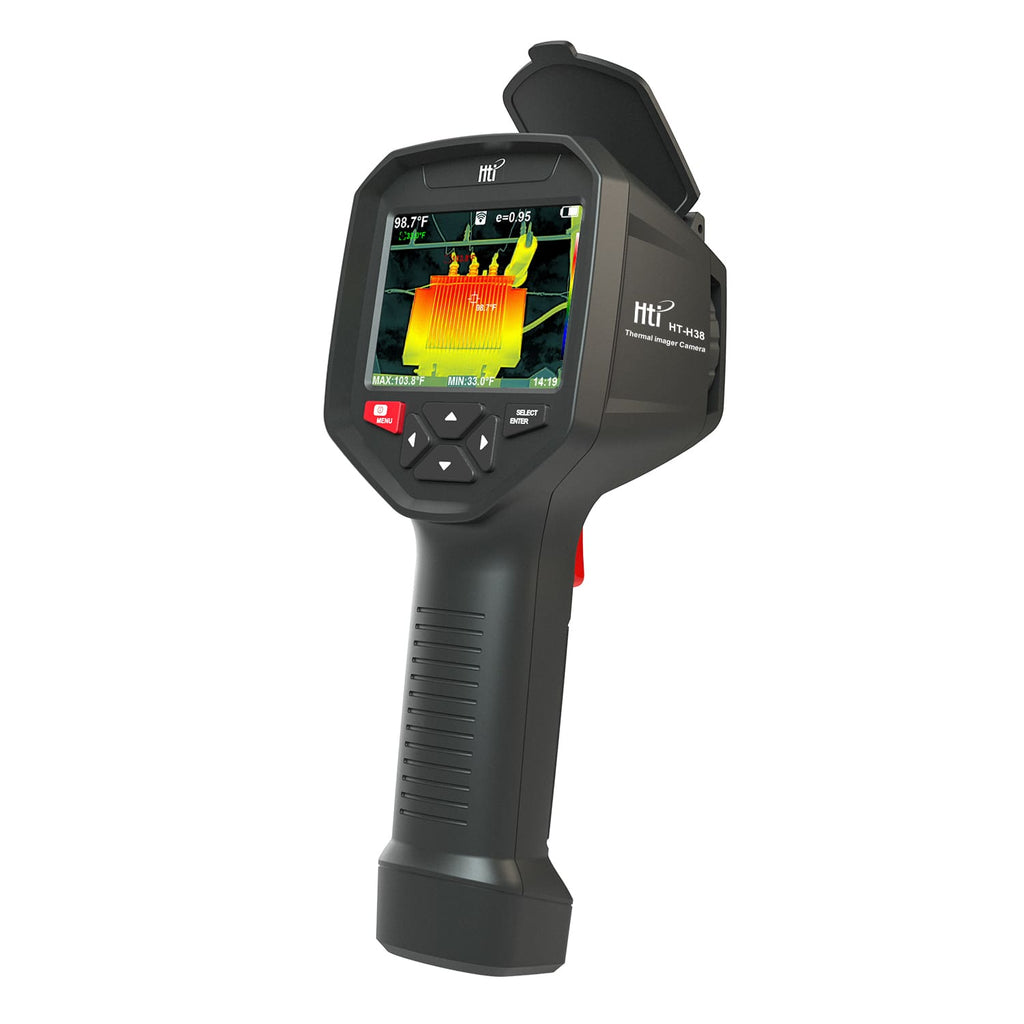

2024 New product, upgraded model of HT-H8, with analysis software, can record video.
Infrared resolution |
384x288
|
Infrared response band
|
8 to14μm
|
Pixel size
|
12μm
|
NETD
|
≤50mK @25℃,@F/1.0
|
Lens focal length
|
9.1mm
|
IFOV
|
1.32mrad
|
Field angle
|
29.2°×21.7°
|
Focusing mode
|
Manual
|
Temperature measurement
|
Low range:-20℃~+120℃
(-4℉ to 248℉);
High range120℃~+550℃
(248℉ to 1022℉)
|
Temperature measurement
precision
|
-15℃ to 550℃ ±2℃ or ±2%;
-20℃ to -15℃ ±4℃
|
Temperature measurement
resolution ratio
|
0.1℃
|
Temperature measurement
mode
|
Center point/cold and hot point
tracking
|
Pallete
|
Rainbow/ Iron/Cold colour/
White hot/Black hot
|
Emissivity setting
|
0.01 to 1.00 adjustable
|
Thermal imaging frame rate
|
≤25Hz
|
Image display mode
|
thermal/fusion/picture in picture/
digital camera
|
Display screen size
|
3.5 inches(640×480)
|
Equipment storage
|
Built-in 16G(The storage space used
by the user is about 13.4G)
|
Format of stored image/
video
|
JPG/MP4
|
Export mode of image and
video
|
USB connected with a computer to
export
|
Image analysis function
|
Support offline analysis of PC end
|
Battery type
|
Built-in rechargeable 26650 lithium
battery
|
Battery capacity
|
5000mAh
|
Work time
|
≥4 hours
|
Power interface
|
Type-C
|
Auto shutdown time
|
5minutes/10minutes/20minutes/
not auto shutdown
|
Work temperature
|
-10℃ to +50℃
|
HT-H38 MANUAL:Dowload
